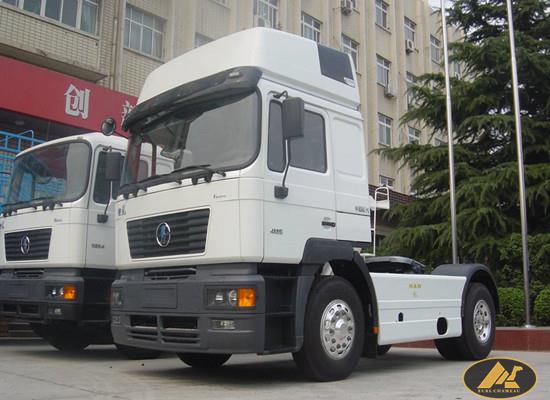

| Model | SX4184JV351 |
| Drive type | 4×2 |
| Weight |
|
| Complete kerb mass (kg) | 7200 |
| GVW (kg) | 20000 |
| GCW (kg) | 40000 |
| Dimensions |
|
| Max.length (mm) | 6135 |
| Max.width (mm) | 2490 |
| Max.heigh (mm) | 3210 |
| Front / Rear overhang (mm) | 1525/1110 |
| Wheel base(mm) | 3500 |
| Track width(mm) | 2036/1800 |
| Performance |
|
| Max.speed (km/h) | 113 |
| Min.turning circle(m) | 13.7 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 20/44 |
| Max.gradeability(%) | 34 |
| Engine |
|
| Brand | WEI CHAI |
| Model | WD12.420 |
| Power(kw/HP) | 309/420 |
| Max.Torque (N.m )/rpm | 1750/1300-1600 |
| Displacement (L) | 11.596 |
| Emmission Standards | Euro II |
| Transmission |
|
| Brand | FAST |
| Model | 12JS180T |
| Control type | manual |
| Gear Shift | 12-forward and 2 reverse speeds |
| Clutch |
|
| Type | Single plate,diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical type,hydraulic and pneumatic operation |
| Brakes |
|
| Type | Drum |
| Service brake |
With dual-circuit compressed air brake |
| Park brake |
Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering |
|
| Type |
Integral circulating ball power sreering |
| Option | ZF8098 |
| Chassis |
|
| Type |
Ladder structure with parallel straight |
| Dimensions (mm) | 243×80×(8+5) |
| Suspension |
|
| Front Suspension | Longitudinal leaf spring |
| Rear Suspension | Inverted leaf spring stabilizator suspension |
| Axles |
|
| Brand | HANDE |
| Front axle | 7500kg |
| Rear axle |
13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 4.8(option 4.42) |
| Tyres |
|
| Type (Standard) | 12.00-20 |
| Option |
12.00R20/11.00-20/11.00R20/12R22.5, 315/80R22.5 |
| Fueltank |
|
| Tank capacity (L) | 380 |
| Material | Metal |
| Electrics |
|
| Type | 24V |
| Starter | 5.58kw(24V) |
| Generator | 1.54kw(28V 55A) |
| Battery | 2×135Ah |
| Cab |
|
| Type | MAN F2000, Lengthened flat roof |
| Equipments |
2 rear window,mechanical clerestory, hydraulic suspension cab,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,with USB,can play radilo with MP3 format |
| Option |
electric windows,electricity heated rear-view mirror,CD,Tachograph; 4 point air suspension,A/C,air suspension driver seat with handle and eatbelts, electricity reversal cab |
| Other |
|
| The fifth wheel | 2 inch |
| saddle ground clearance(mm) |
1400 |
