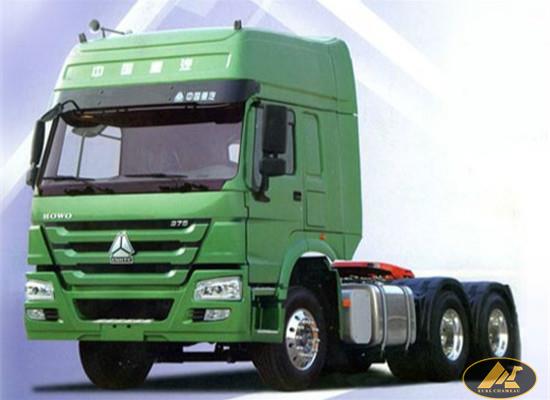

| SINOTRUK HOWO-7/ZZ4257M3247CTYPE | |||
| Weight Parameter | Complete Vehicle Kerb Mass（kg） | 8800 | |
| Maximum authorized total mass （kg） | 25000 | ||
| Maximum authorized towed total mass(kg) | 2,980,033,200 | ||
| Dimension Parameter | External Dimensions(mm) | Length | 6800 |
| Width | 2496 | ||
| Height | 2,958,371,835,633,660 | ||
| wheelbase(mm) | 3225+1350,3200+1400 | ||
| Minimum Ground Clearance(mm) | 260 | ||
| Performance Parameter | Maximum Speed(km/h) | 90,102 | |
| Economical Speed(km/h) | 72,82 | ||
| Maximum Gradeability(%) | 35 | ||
| Turning diameter(m) | 15 | ||
| Recommended Configuration | Engine | Engine Type | WD615.92,WD615.93,WD615.92E,WD615.93E,WD615.92C,WD615.93C,WD615.97C,WD615.97E |
| Rated power(kW)/Rev(r/min) | 196/2200 213/2200 196/2200 213/2200 198/1900 213/2200 221/1900 221/1900 | ||
| Maximum Torque(N*m)/Rev(r/min) | 1100/1100-1600 1160/1100-1600 1100/1100-1600 1160/1100-1600 1190/1100-1600 1290/1100-1600 1290/1100-1600 1160/1100-1600 | ||
| Transmission | HW15710 | ||
| Clutch(mm) | 430 | ||
| Rear Axle | Type | HW16 | |
| Speed Ratio | 3.73 | ||
| Fuel Tank(L) | 400 | ||
| Chassis Cross-section(mm) | 300 | ||
| Suspension(Front,Back) | 9/12,4/12,4/-,9/-,3/12,3/-,3/5 | ||
| Tyre | 11.00-20 18PR,11.00R20 16PR,12.00-20 16 | ||
