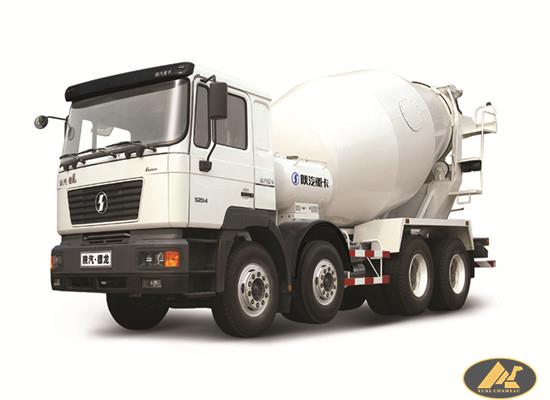

| Model | Shacman F2000 SX5254GJBJT364 | |
| Driving type | 6X4 | |
| Weight | Complete kerb mass (kg) | 13430 |
| GVW (kg) | 32500 | |
| Dimensions | LxWxH (mm) | 9130X2490X3950 |
| Effective volume(m3) | 8 | |
| Front/rear overhang(chassis) | 1525/2630 | |
| Wheel base (mm) | 3625+1350 | |
| Performance | Max. Speed ( km/h) | 88 |
| Min. Turning circle (m) | 17.8 | |
| Min. Ground clearance (mm) | 314 | |
| Approach/Departure angle(°) | 20/19 | |
| Transmission | Brand | FAST |
| Model | RT-11509C | |
| Control type | Manual | |
| Gear shift | 9-forward and 1-reverse speeds | |
| Clutch | Type | Single plate, diaphragm spring |
| Diameter (mm) | D-430 | |
| Action | Mechanical type, hydraulic and pneumatic operation | |
| Brakes | Type | Drum |
| Service brake | With dual-circuit compressed air brake | |
| Park brake | Power spring brake acting on rear wheel | |
| Auxiliary brake | WEVB | |
| Optional | ABS | |
| Steering | Type | Integral circuiting ball power steering |
| Optional | ZF8090 | |
| Chassis | Type |
Ladder structure with parallel straight 300X80X(8+7) |
| Tyres | Type(standard) | 11.00-20 |
| Optional | 12.00R20/11.00R20/12.00-20/12R22.5 | |
| Fuel tank | Tank capacity (L) | 380 |
| Material | Metal | |
| Electrics | Type | 24V |
| Starter | 5.58kw (24V) | |
| Battery | 135Ah | |
| Cab | Type | MAN F2000, Lengthened flat roof |
| Equipemets | Hydraulic suspension cab, hydraulic chair with seatbelts, 1 sleeping bed | |
| Optional | 4 point are suspension, A/C, air suspension driver seat, 2 sleeper bed... | |
