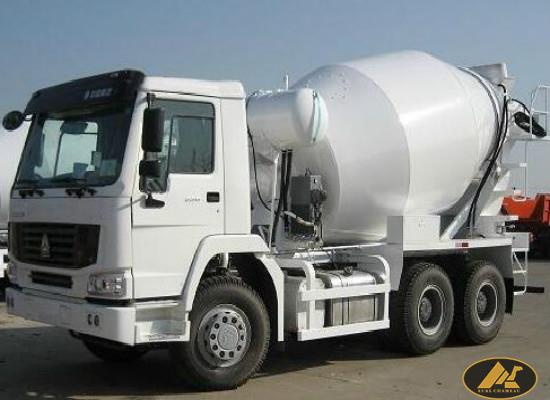

| Model | 8m3 concrete mixer truck | |
| Whole Vehicle Performance & Parameters | Chassis | HOWO ZZ1257N3241W |
| Curb Weight (Kg) | 13220 | |
| Total Vehicle Weight (Kg) | 25000 | |
| Outline Dimension(L*B*H) (mm) | 9800x2496x3880 | |
| Wheelbase (mm) | 3175+1350 | |
| Front Overhang (mm) | 1500 | |
| Rear Overhang (mm) | 1400 | |
| Min. Clearance Above Ground (mm) | 314 | |
| Max. Traveling Speed (km/h) | 90 | |
| Min. Turning Diameter (M) | 19.6 | |
|
Oil Consumption per 100 km (under limited conditions) |
≤34 | |
| Vehicle Configuration | Clutch | Dry Single Disc Clutch (φ430) |
| Gear Box | HW19710 | |
| Driving Type | 6*4 | |
| Steering Mechanism | ZF8118 | |
| Service Brake | Dual-circuit Air Brake | |
| Parking Braking | Spring-powered Air-cut-off Brake | |
| Auxiliary Brake | Engine Exhaust Brake | |
| Tyre | 12.00R20 | |
| Engine Parameters | Model | WD615.47 |
| Type | In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Injection Diesel Engine | |
| Emission Standard | Euro II | |
| Max Power (KW) | 371 HP(2200r/min) | |
| Max Torque | 1350N.m | |
| Mixing Drum Parameters | Max Mixing Cubage (m3) | 10 |
| Feeding Speed (m3) | ≥3.5 | |
| Discharging Speed (≥m3) | ≥3 | |
| Leftover Rate | Nearly Zero | |
| Max Rotating Speed (r/min) | 0~14 | |
| Mixing Drum Obliquity (°) | 13.5 | |
| Max Mixing Drum Diameter (mm) | φ2162 | |
| Speed Reducer | Italian Top P68 | |
