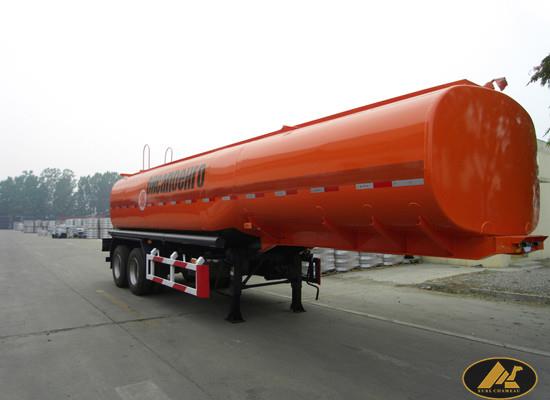

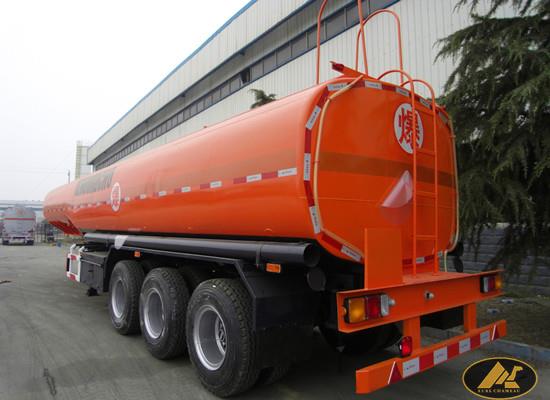

CIMC 3 Axles Fuel Tanker

Model NO.: CIMC9400GHY
Load Capacity: 30T
Wheel Base: 7000-8000mm
Grade: Heavy Duty
Shape: Flatbed
Tire Number: 12
ABS Anti-lock Braking System: ABS Anti-lock Braking System
Condition: New
Axle Brand: Fuwa 13ton
Kingpin: Optional for Jost 2" or 3.5"
Warranty: 12 Month
Bulkhead: Thickness Is 5mm
Advantage: China Best Quality & Best Price
Transport Package: Nude Packing
Origin: Jiangsu, China
Type: Semi-Trailer
Certification: CE, CCC, ISO/TS16949
Tread: 1820mm
Independent Suspension Type: Multi-link Type
Axle Number: 3
Self-dumping: Not Self-dumping
Material: Iron
Color: as Customers Requirements
Suspension: Leaf Spring Suspension
Langing Gear: Jost Dual-Speed Landing Gear
Tank Material: Carbon Steel, 5mm Thickness
Baffle: Thickness Is 4mm Approx
Trademark: CIMC
Specification: ISO, TS16949, CCC
HS Code: 87163110

Detail

CIMC 42m3 Aluminum alloy oil transport semi-trailer/fuel tanker
PARAMETER	Dimension(mm)	Lwh:12960,1275025003900(mm)
	Axle space(mm)	7000mm+1310mm+1310mm
	Tare weight(kg)	6480kg
	Loading capacity	42000L
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	2" bolted type
	Brake system	Dual line pneumatic brake system.
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	common suspension
	Axle	BPW/FUWA axle, 13 ton capacity/set,3pcs
	Tire	425/65R22.5 , 6pcs
	Rim	13*22.5 6 pcs
	Tool box	0.8 meters toolbox,one pcs aluminum alloy
	Spare tire carrier	two pcs
TANK SPECS	Compartment	One or according to your requirment
	Tank material	aluminum alloy, thickness 6mm
	Bulkhead	Thickness is 7mm
	Baffle	Thickness is 7mm
	Shape of tank	Ellipse (double "d")
OTHERS	Fire extinguisher	2 pcs
	Manhole	two manhole
	Discharge hose	6m
	Painting	Sand blasting before painting;one coats of primer, anti corrosion,two coat of finish painting;colour advised by client
