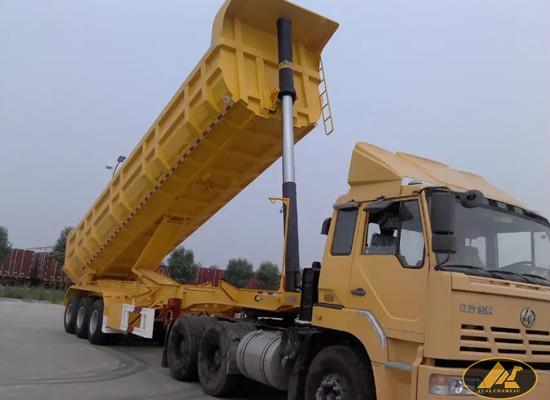

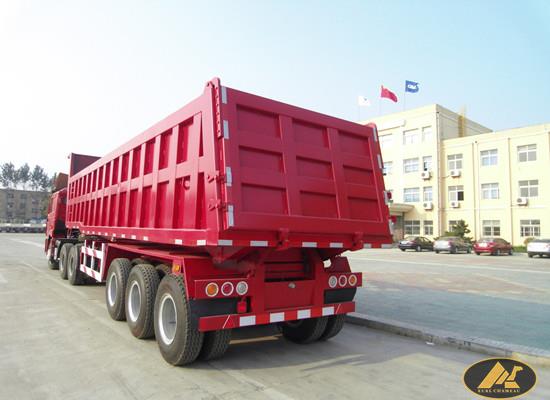

3 Axles Tipper Semi Trailer

Model NO.: tipper semi trailer
Load Capacity: 34 Tons
Wheel Base: 7000-8000mm
Shape: U Shape Tipper
Tire Number: 12+1 PCS
ABS Anti-lock Braking System: ABS Anti-lock Braking System
Condition: New
Certificates: ISO/Ts16949
Suspension: Tandem Type
Trademark: CIMC
Specification: 9294x2500x3190
HS Code: 87163910
Type: Semi Trailer
Certification: ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Grade: as Customer′s Request
Axle Number: 3 Fuwa/BPW Axles
Self-dumping: Self-dumping
Material: Steel
Beam Material: Q345 High Performance Steel
Axle Brand: Fuwa or BPW
King Pin: Baohua or Jost
Transport Package: Packing: Bulk
Origin: China

Detail

Product Specifications
Dimensions and weight (can be adjustable based on need):

Dimension (Approx):	Length:	Approx 9,294 mm
	Width:	Approx 2,500 mm (including mud guard)
	Height:	Approx 3,190mm
	King Pin Location:	Approx 1235mm from the front face of the front bolster
	Axle spacer:	Approx 4,510mm+1,310mm+1,310mm
	Landing Gear location:	2,420mm behind the king pin location
	Fifth wheel (King Pin) Height:	Approx 1,283mm with the chassis level
	Capacity(Tolerance 0~-3%):	22CBM
Body:	Side wall:	3.0mm
	Floor:	6.0mm
	Inner dimension:	Approx 8,440mmx2,300mmx1,260mm
	Material:	High tensile wear-resistant steel choose by factory
Weight:	Tare Weight (Tolerance 0~-4%):	Approx 8,230kg
	Max Payload:	Approx 31,770kg
	Gross Vehicle Weight:	Approx 40,000 kg

Steel Structure:
Material: High Strength low alloy steel Q345(350Mpa yield strength) is used for welding I-Beam and Q235(235Mpa yield strength) is used for the fabricated parts.
Main Beams: 500mmx146mmx6mm web welded I-sectionmain beams.

OEM Parts Configuration:
Could be adjusted according to customer's request.

OEM Parts Configuration:	King Pin:	2"bolted king pin. Brand: JOST. Made in China.
	Landing Gear:	SAF-HLD 30T, 19"
	Suspension:	American type mechanical suspension with equalizers 7-leaf spring
	Axles:	13 tons capacity × 3, CIMC
	Rims:	8.0V-20, equip 13 per chassis
	Tires:	double coin, type: 1100R20-18PR,RLB,equip 13 per chassis
	Brake System:	Dual air brake system, WABCO relay valve, without ABS
	Brake chamber:	Type 30/30 on the all axles.
	Electrical System:	24volt lighting system, 7-way receptacle, ISO standard.

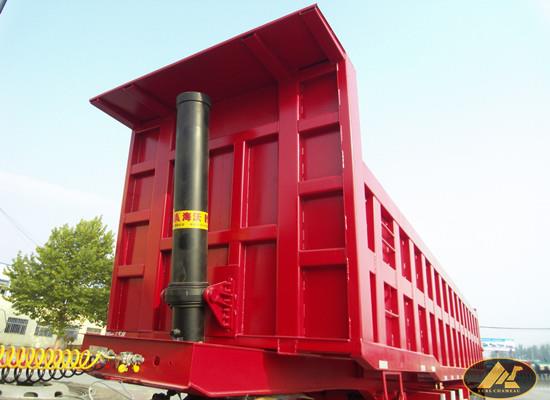

	Hydraulic system:	Brand & Type: HYVA with all the hydraulic kits including the oil tanker, Valve, connecting pipe, but not provide the PTO. Customer needs modify the Truck tractor by themselves for whole vehicle operation.
