CIMC 3 Axles Low Bed With Hydraulic Ladder
Model NO.: ZJV9408TD
Load Capacity: 50T
Wheel Base: 7000-8000mm
Grade: 12000kg
Shape: Low Bed
Tire Number: 12 PCS
ABS Anti-lock Braking System: ABS Anti-lock Braking System
Condition: New
Suspension: Mechanical Suspension
Payload: 50ton
Tire: 12r22.5
Ladder: Mechanical ;Hydraulic Can Be Opptional
Brake: Drum
Transport Package: 3 PCS One Packing or Container Packing
Origin: China
Type: Semi-Trailer
Certification: CE, ISO9001, DOT, CCC, ISO/TS16949
Tread: 1840
Independent Suspension Type: Mechanical
Axle Number: 3 Axle
Self-dumping: Not Self-dumping
Material: Steel
Axle: 13X13ton
Width: 3000mm
Function: Machine Transport
Wheel Rim: 9.0-22.5
Goosneck: Welding Type
Trademark: CIMC
Specification: naked packing volume: 115cbm(3 pcs one packing)
HS Code: 87163990
Detail
1.product picture

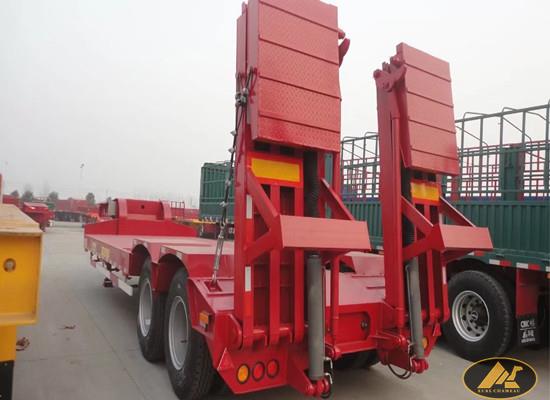

3 Axle Low Bed Semi Trailer with Hydraulic Ladder Stand
2.product parameter(different payload the parameter will be change)
size 13000x3000x1700mm(from the top of goosneck to the ground)
payload 50ton
tare weight  12000kg
axle 5/4/3x13ton/14ton/16ton/20ton   brand can be opentional
suspension  mechanical suspension/air suspension/american type/germany type can be opentional
tire 11R22.5/12R22.5/11.00R20/12.00R20    brand can be opentional
wheel rim 8.25/9.0/8.0/8.5
kingpin  2"/3.5"
I  beam  up:20mm;bottom:20mm;middle:10mm;height:500mm;width:200mm:material:Q345B
landing gear  jost c200 /fuwa  two speed 28ton
floor 5mm checkered plate
ladder  mechanical /hydraulic pressure ladder can be opptional
spare tire carrier  2 pcs
tool box 1
air wiring  doule air line ;
electricity wiring  6 core wiring;24v or 12v ;LED lamp;
brake system  wabco relay valve;drum brake;t30/30 brake chamber
paiting  complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;
2  coats of final paiting
colour  opentional
accessories  brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp


 BRIEF DESCRIPTION

the normal produce process is very important.it can be influence the quality-durable years of the product .even the customer confidence to our product.

3.NORMAL PROCEDURE

1)cutting

use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing

2)welding

after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middle  plate  will  be welding together .  this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on

3)blasting

this process is use for the first step of surface cleanness-stress relief-derusting before paiting .

4)electrophoresis coating

this process use for more detail surface cleanness

5)epoxy zinc primer spray coating

this process is the lasting one before paiting .after this process the trailer an be paiting

6)assembly

after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on

7)packing

The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer

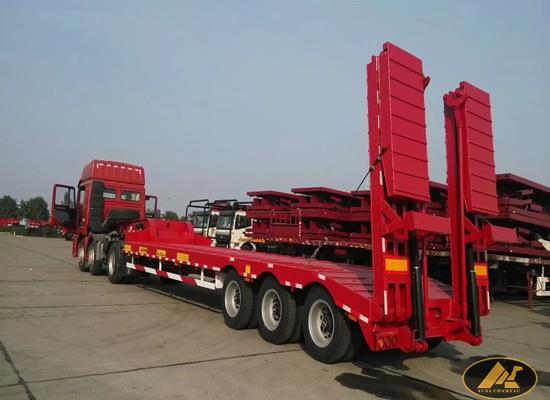

3 Axle Low Bed Semi Trailer with Hydraulic Ladder Stand


4.PRODUCT DETAILS

1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory

2)surface should be clean and looks beautiful.

3)brake system should be adjust before the product leave the factory

4)lamp should my checking before leave the factory

5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory


3 Axle Low Bed Semi Trailer with Hydraulic Ladder Stand
