Define：
1.  Powerful DST motor offers lower energy consumption, but higher output.
2.  Melt pump, double T-Die and three folding units system, offer wider application of flat yar.
3.  Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally and fully, bring the easier operation and more stability. (option).

4.  Apple to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various specifications.

Configuration:

Material loading  Auto. Vacuum material-feeding loader	▲	Hot air oven, length 6 m	▲
Film take-off With multi drives and moisture absorption unit	▲	Melt pump	△
Automatic filter	▲	Static mixer	△
Flat Die	▲	Screw type loader/ mixing unit    Gravimetric dosing / mixing unit	△
Water quench tank	▲	Flat tape folding unit	△
Slitting Unit	▲	Flat tape fibrillator unit	△
Integrated holding unit	▲	Film thickness gauge and control system	△
Edge trim recycle and reefed system	▲	Industrial Process Computer / Europe	△
Stretching section with 6 godets, incl. heating unit	▲	Multi stretching and annealing section	△
Vacuum tape extraction incl. collection box	▲

Standard ▲ Option △

  Technical data:

Extruder
Screw Diameter (mm)	90	105	120	135
Max. capacity (kg/h)	450	550	800	1000
Screw Revolutions (r/min)	20-160

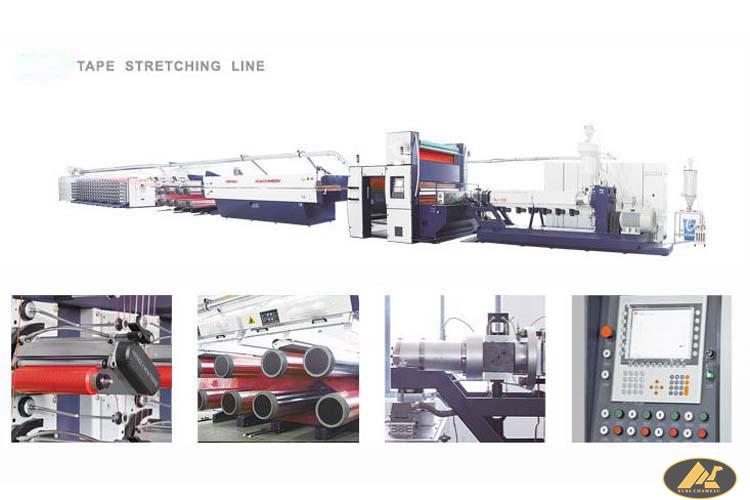

Tape stretching line
T-die Width (mm)	800	1100	1500	2×1000	2×1200
Length of over (m)	6
Max.operating speed (m/min)	450
Flat thread fibre scope (tex)	60-200
No. of winders (standard)	132	180	216	252	264
