Define:

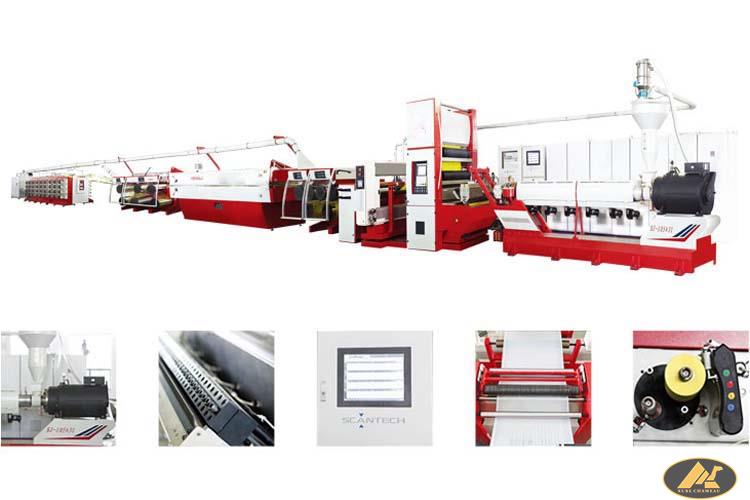

1.Direct drive motor and two stretching unit in tape stretching line application, with automatic adjustment of die and the thickness online measuring system, a high efficiency and energy saving, hand provides high strength, low Daniel yarn production regulation.
2.Online thickness measurement system of application so that the film is more uniform, stable, saving the cost of raw materials, visualization of the automatic adjustment of die lip, has changed the traditional mould head adjusting mode, more intuitive, more convenient ( optional)
3.Cutting unit adopts six groups of non-stop change form, improve the production efficiency.
4.Auto winding machine use, more suitable for the demand of high speed tape stretching line.
5.Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally and fully, bring the easier operation and more stability. (option)
6.Apply to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various

Configuration:

Material loading        Auto. Vacuum material-feeding loader	▲	Hot air oven, length 6 m	▲
Film take-off       With multi drives and moisture absorption unit	▲	Melt pump	△
Automatic filter	▲	Static mixer	△
Auto.adjust Die	△	Screw type loader/ mixing unit  Gravimetric dosing / mixing unit	△
Water quench tank	▲	Flat tape folding unit	△
Slitting Unit	▲	Flat tape fibrillator unit	△
Integrated holding unit	▲	Film thickness gauge and control system	△
Edge trim recycle and reefed system	▲	Industrial Process Computer / Europe	△
Stretching section with 6 godets, incl. heating unit	▲	Multi stretching and annealing section	△
Vacuum tape extraction incl. collection box	▲	Auto Winding machine	△
Standard  ▲ Option △

  Technical data:

Extruder
Screw Diameter (mm)	90	105	120	135
Max. capacity (kg/h)	450	550	800	1000
Screw Revolutions (r/min)	20-150/20-200

Tape stretching line
T-die Width (mm)	800	1100	1500	2×1000	2×1200
Length of over (m)	6
Max.operating speed (m/min)	600
Flat thread fibre scope (tex)	60-200
No. of winders (standard)	132	180	216	252	264
