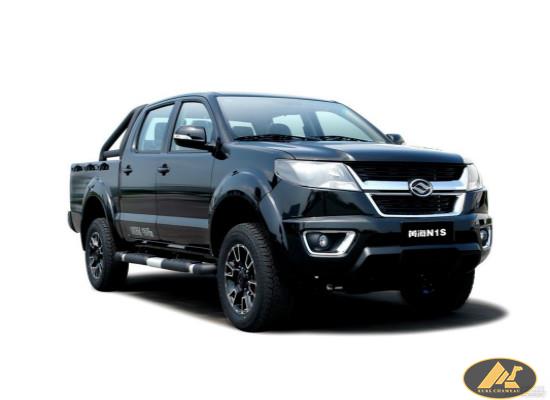

HUANGHAI N1S PICKUP SEPCIFICATION

N1S

Vechile Code

DD1031K

DD1031KA

DD1031L

DD1031LA

Drive Type

2WD DIESEL

4WD DIESEL

2WD GASOLINE

4WD GASOLINE

Factory Code

N119

N123

N118

N122

Version

Sport

Sport

Sport

Sport

BASIC PARAMETER

Outlined dimension：L x W x H(mm)

5350×1825×1840

Cargo box dimension：

1615×1520×465

wheelbase（mm）

3200

tread（front/rear）（mm）

1502/1510

Rated passenger（person）

2+3

Approach angle/Departure angle（°）

≥32/26

Minimum ground clearance（mm）

≥210

Max s peed(km/h)

150

Emission standard

GB18352.3-2005 CHINA Ⅳ

Gross mass

2845

2855

2735

2745

Curb weight(kg)

1870

1760

Load capacity(kg)

650

650

POWER PARAMETER

Engine

Isuzu JE493ZLQ4CB(common rail)

Mitsubishi 4G69S4N

Displacement（L）

2.771

2.378

Power（KW）

75

105

Torque(N.m)

220

260

200

Transmission

5MT

5MT

SAFETY PARAMETER

rear door child lock

●

●

●

●

Front seat 3 piont safety belt

●

●

●

●

High mounted stop lamp

●

●

●

●

ABS+EBD

●

●

●

●

Rear View Camera

●

●

●

●

Power Steering

●

●

●

●

COMFORT

Power window

●

●

●

●

Power Rear view mirror（turning light）

●

●

●

●

Central locking

●

●

●

●

Headlamp adjustable height

Manaul

Manaul

Manaul

Manaul

Anti-glazing interior mirror

●

●

●

●

MP5+GPS

●

●

●

●

Electronic protection A/C

●

●

●

●

imitation leather seat

●

●

●

●

Rear door speaker

—

—

—

—

Body&door knob same color

●

●

●

●

Electroplate door knob

—

—

—

—

Appearance

Electroplate rearview mirror

—

—

—

—

Metal paint

●

●

●

●

Side footpandel

●

●

●

●

Rear cargo bed liner

●

●

●

●

17' black-gold Alum-alloy wheel

●

●

●

●

Tyre

235/65R17

NOTE

1、“●”WITH    “○”OPTION    “—”WITHOUT，
