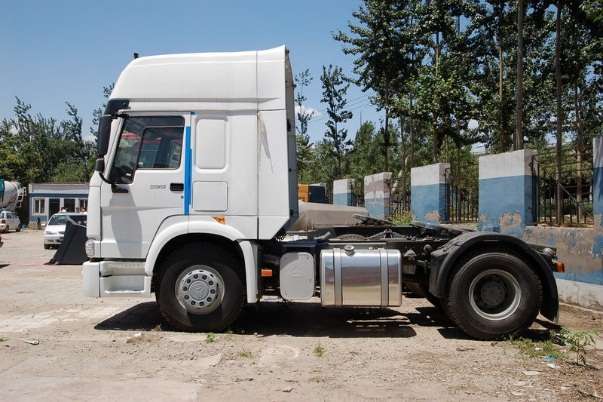

HOWO Tractor head 4x2

Howo 4x2 tractor head truck / trailer head truck / truck tractor

Model
ZZ4187M3511V

Engine
make:SINOTRUK
Diesel:4-stoke direct injection diesel engine
Engine model:WD615.87,EURO II emission standard
6-cylinder in-line with water cooling,turbo-charging and intercooling
Maximum output:290 hp (213kw) at 2200rpm
Maximum torque:1160 nm at 1100-1600 rpm
Displacement:9.726L
Bore:126 mm
Dimensions in mm

Wheel base 3500
Front wheel track 202
Rear wheel track 1800
Front overhang 1500
Rear overhang 1110
Approach angle(°) 15
Departure angle(°) 42
Overall length 6110
Overall width 2480

Detail

Details

Major Parameter
Road Type			Paved road
Max weight(t)			≤50
Drive Type			4x2
Cruising speed/Max speed			70-80/109(Km/h)
Vehicle model			ZZ4187N3617D1B
Rated Load（ton）			35
Capacity of the fuel tank			400L

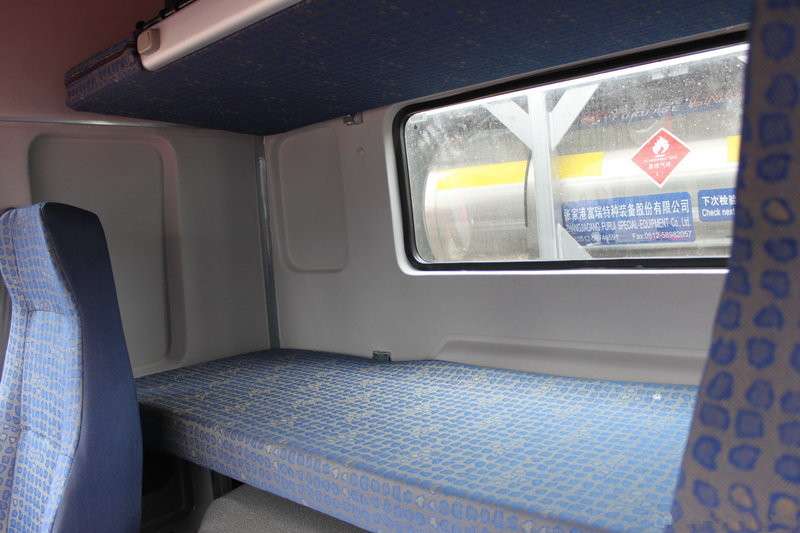

Cab (HW79, lengthened high roof)
Equipments	Two sleeping beds
	Automatic air conditioning
	Mechanical clerestory
	Four point air suspension
	Air cushioned drivers seat
	radio with MP3 player

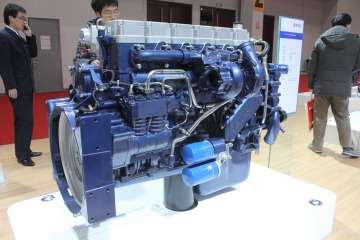

					Engine
					Engine type		D10.34-40
					Emission standard		Euro III
					Displacement		9.726L
					Rated Power / rotating		250Kw/2200rpm
					Maximum Torque		1500Nm
					Fuel type		Diesel

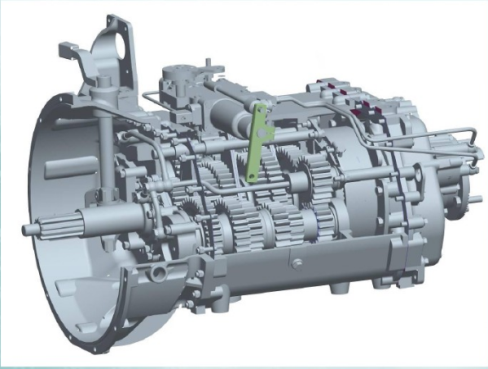

Transmission
Type		HW19712CL
Torque		2100Nm
Weight		285kg
Rated rotating		2600rpm
Oiling quantity		12

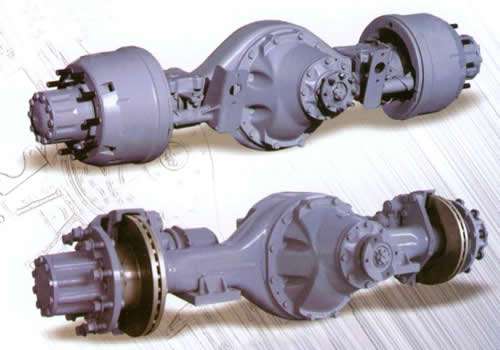

					Axle
					Front axle	HR7
						Disc Brake
					Rear axle	MCY13
						Dump Brake
					Speed ratio	4.11
Steering system			ZF Steering system
Clutch			φ430
Tire			295/80R22.5
Wheels number			6+1
Frame Specification
Frame				HUV Frame
Dimensions(LWH)(mm)				600024963835
Wheel base (mm)				3600
Front Suspension (mm)				Few leaf springs/1500
Rear Suspension (mm)				Few leaf springs/1025
Approach/Departure angel				14/42
