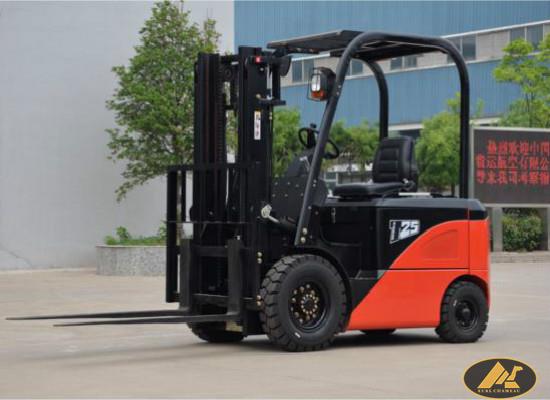

Jjcc 2.5 TonElectric Forklift

Model NO.: CPD 25
Power: AC Motor
Fuel: Electric
Lift height: 3000~5000mm
Fork Size: 1070*120*45 mm
Mast Tilt Angle (Forward/Backward) : 6/10 Deg
Power Type: Battery
Battery Capacity: *630/700
Hydraulic Motor: 15/2200 Kw/Rpm
Specification: 2381*1265*2125 mm
Load Capacity: 1T - 5T
Load center: 500mm
Fork Outside Spread (Min./Max.) : 240/1040 mm
Rated Capacity: 2500kg
Battery Voltage: 48V
Drive Motor: 8/1300 Kw/Rpm
Controller: Smeac Italian Sme AC Controller

Detail

General	Manufacturer			JJCC Forklift
	Model			CPD25J
	Power type			Battery
	Rated capacity		kg	2500
	Load center		mm	500
Dimension	Lift height		mm	3000
	Free lift height		mm	140
	Fork size		mm	1070×120×45
	Fork outside spread (Min./Max.)		mm	240/1040
	Mast tilt angle (forward/backward)		deg	6/10
	Overall dimension	Length to fork face	mm	2381
		Overall width	mm	1265
		Overhead guard height	mm	2125
	Turning radius		mm	2100
	Front overhang		mm	464
Performance	/ Full load / no load	Travel speed	km/h	12/14
	/ Full load / no load	Lifting speed	mm/sec	300/420
	Max. grade ability		%	10
	Service weight		kg	4360
	Max. pull force(full load)		KN	8
Chassis	Tyre	Front		23X9-10-16PR
Chassis	Tyre	Rear		18×7-8-14PR
Power & Control	Battery	Voltage	V	48
	Battery	Capacity	Ah	*630/700
	Motor	Drive motor	KW/rpm	8/1300
	Motor	Hydraulic motor	KW/rpm	15/2200
	Controller			SMEAC Italian SME AC controller
