Define：

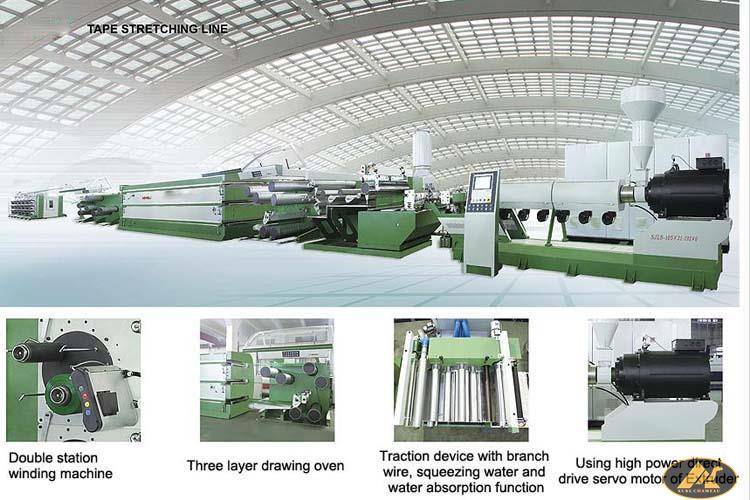

1. Extrusion unit is direct driven by DST motor; reduction gearbox is not longer needed. Achieve the aims of lower power consumption, stable running, and lower noise level.
2. 2. Special designed barrel, screw and mixing head, “coat hanger” type Die can produce yarns with different specifications, colors and shapes. Easy and convenient to operate.
3. 3. Detachable spinneret plate design makes it easy to operate while user needs to produce different shapes of yarns.
4. 4. Strainer inside the module processes the secondary filter raw material, guarantee the yarns quality at a higher level.
5. 5. New equipments like yarns separate unit, squeezing roller, water suction roller and blowing unit remove water completely from the raw yarns after come out from the water tank. To make yarns meet high speed stretching process requirements, increase productivity greatly.
6. 6. Compact designed three layers stretching & annealing hot air oven meet process requirements; meanwhile economize on the use of field. Whole structure artistic practical.
Technical data:
|
Extrusion wire drawing machine
|
|
Item/Type
|
SJLS-105×31-192×6
|
|
Max.melt capacity (kg/h)
|
400
|
|
Screw diameter (mm)
|
105
|
|
Screw diameter (r/min)
|
20~150
|
|
Hole of die
|
192
|
|
Max.operating speed (m/min)
|
300
|
|
No. of winders
|
36
|
|
Dimensions（L×W×H) (mm)
|
32000×5100×3000
|
|
Weight (t)
|
34
|
