Overview:

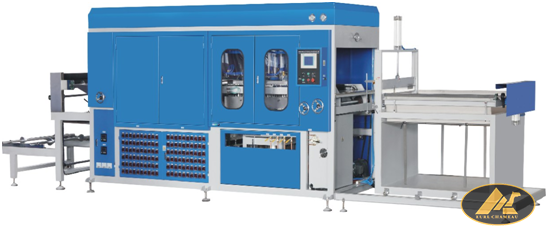

BC-700/1200A  Automatic Computerized Vacuum Forming machine is designed by the principle of  mechanical-electrical-pneumatic integration. It adopts PLC control system,  panel and digital power control. This full-automatic forming equipment for  thermoforming plastic sheet includes feeding, heating, forming, cooling, mold  ejecting, cutting and one blow.

Application area:

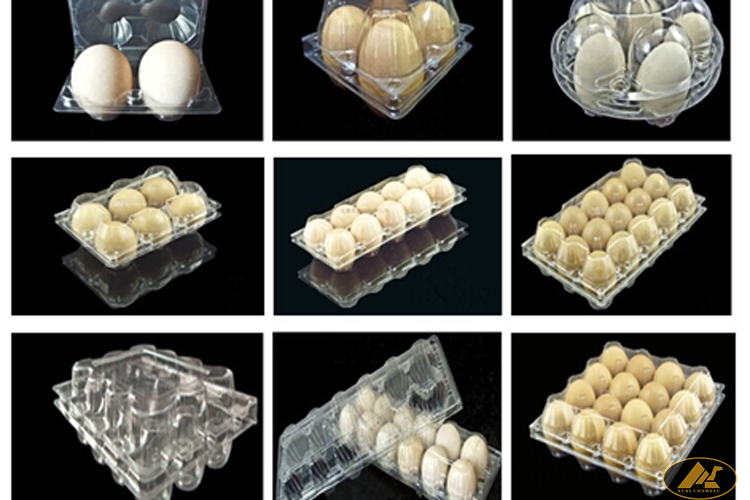

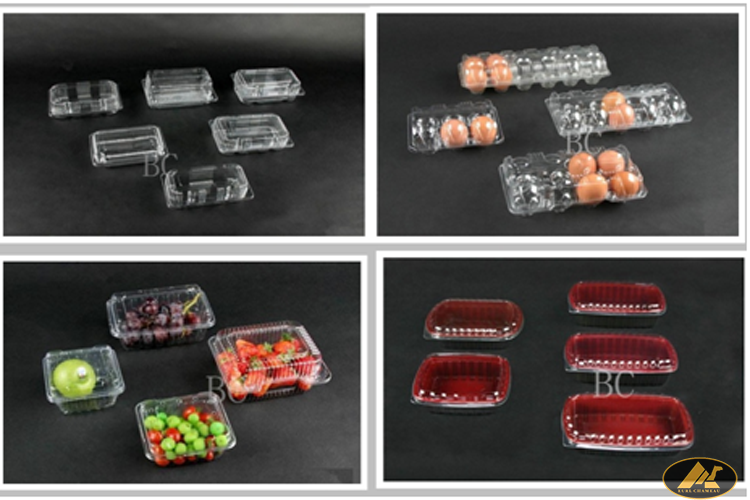

This  machine is mainly applied to plastic sheet material molding, such as PS,  HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays,  trays for medicine injection, oral liquid, vegetables, telephones, cookies,  tool, hardware, electron and disposable tableware, etc.

Main  technical parameters:

Model:

BC-700/1200A-1

Forming  length

760-1200mm

Forming  width

500-700mm

Forming  height

＜165mm

Production  speed

60-720cycle/h

Electro-thermal  furnace power

24kw

Vacuum  motor power

3kw

Pumping  rate

100m³/h

Air  compressor power

7.5kw-11kw

Air  displacement

1.2m³/min

Voltage

380/,  50Hz

Overall  dimensions

7950×1450×2550mm

Weight

3000kg
